Play this online game named ImpedanceMatch2.

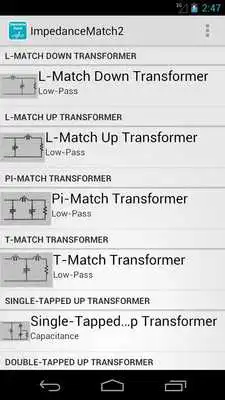

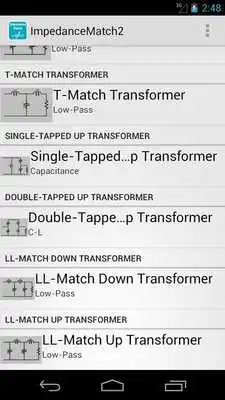

Impedance Match Calculator to transform an output impedance using:
1) L-Match circuits
2) Pi-Match circuits
3) T-Match circuits

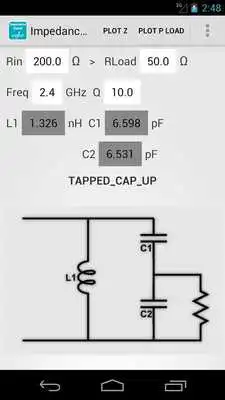

4) SIngle-Tapped circuits
5) Double-Tapped circuits
6) LL-Match circuits

*** The developer takes no responsibility for errors arising from the use of this application. ****

Updates:

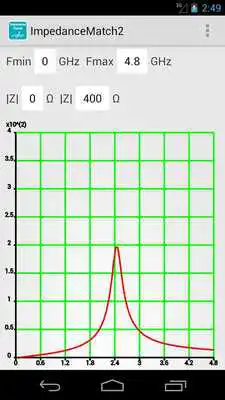

Added gestures to plot.
